Arduino remote switch box

When building up my remote station, i did need some switch box to switch betweem 2 rigs and 6 antennas..

Found that OK2ZI Karel Odehnal made some nice switch box PCB and sets, and the arduino remote i fix myself

http://www.ok2zi.cz/2x1sw.pdf

https://www.ebay.com/itm/274308484260

https://www.ebay.com/itm/274308484272

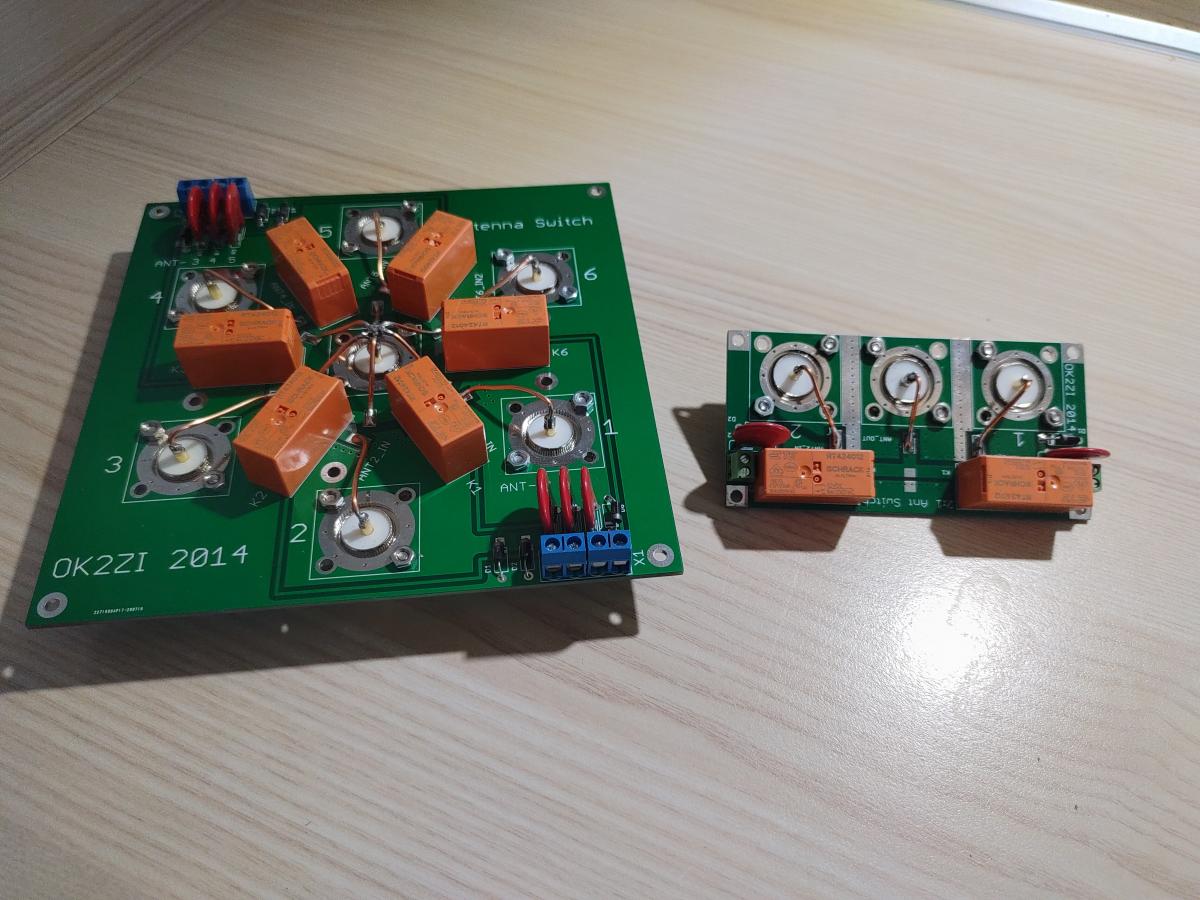

Here you see how the sets look like when recieved from OK2ZI

Switch box 1

My first assambly ....

switch box 2

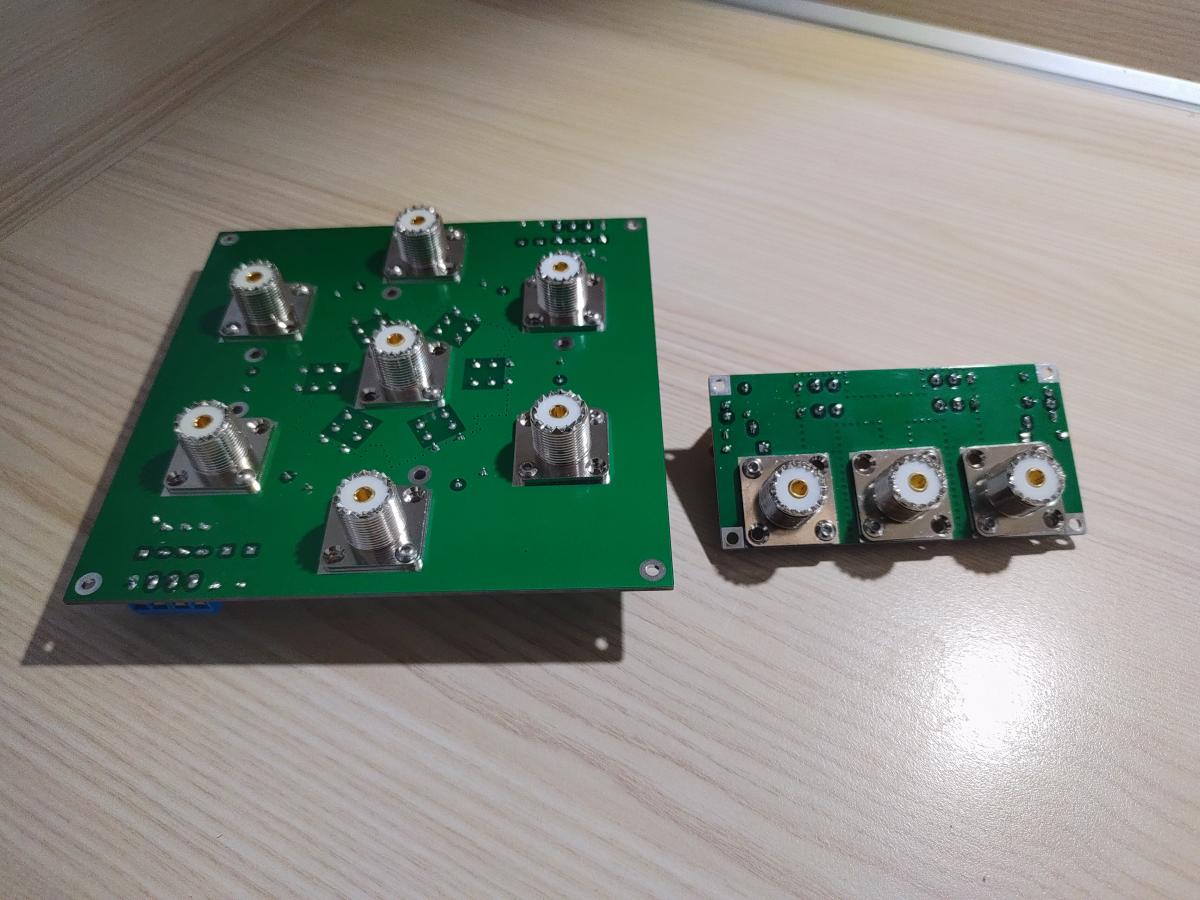

Later on i do lift the connectors away from the PCB to have more space between the board and the aluminium box ...High Power you know ;o)

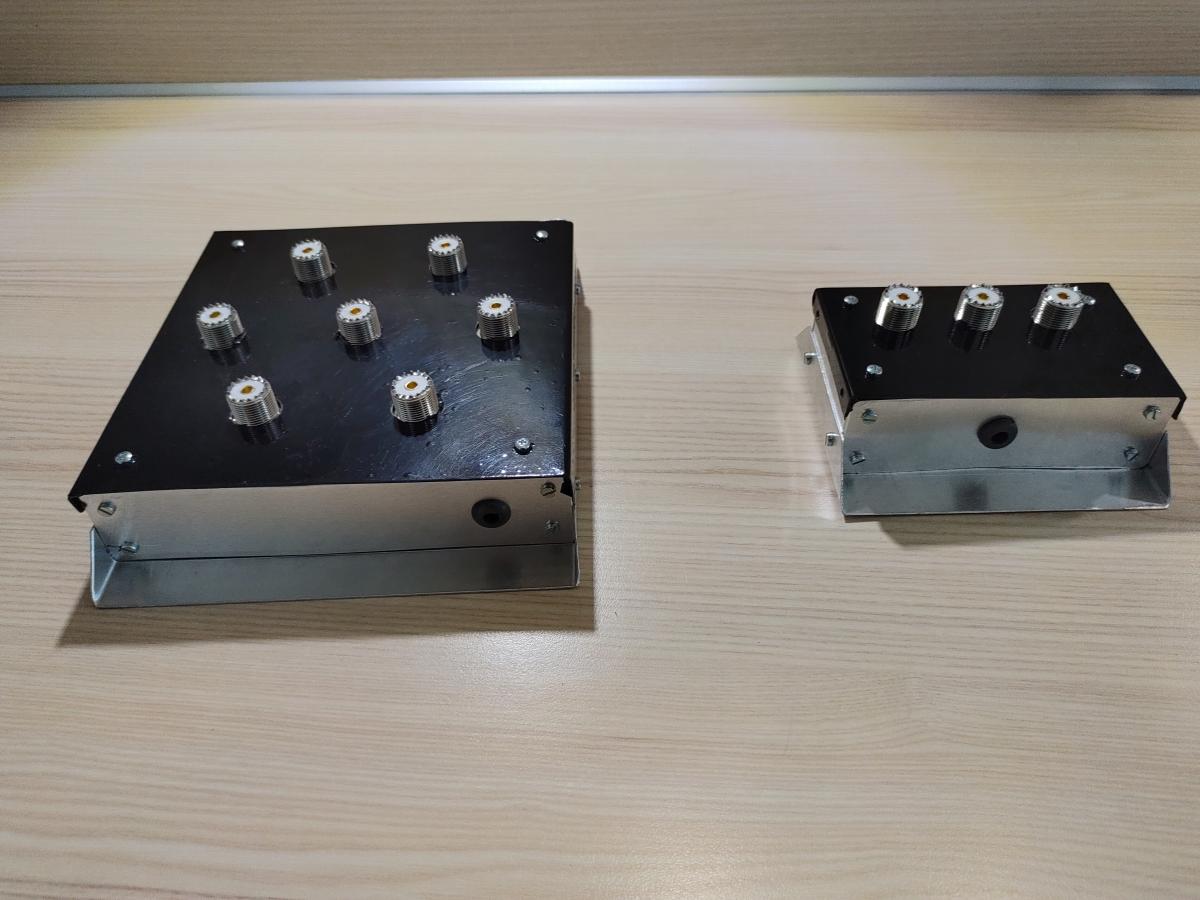

Then out in my tool shop and made 2 boxes  .......

switch box 4

Now connected to the controller box

switch box 3

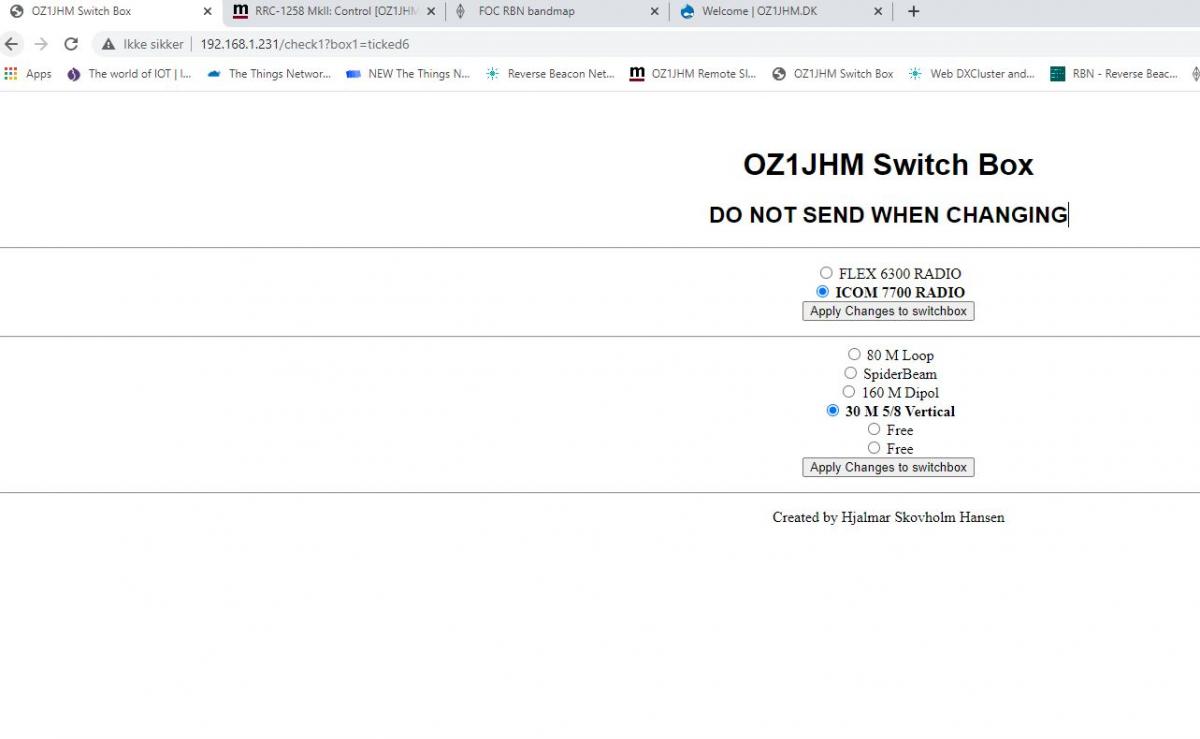

Here the www page so everything go remote
